Highway Guardrail Roll Forming Machine

Description

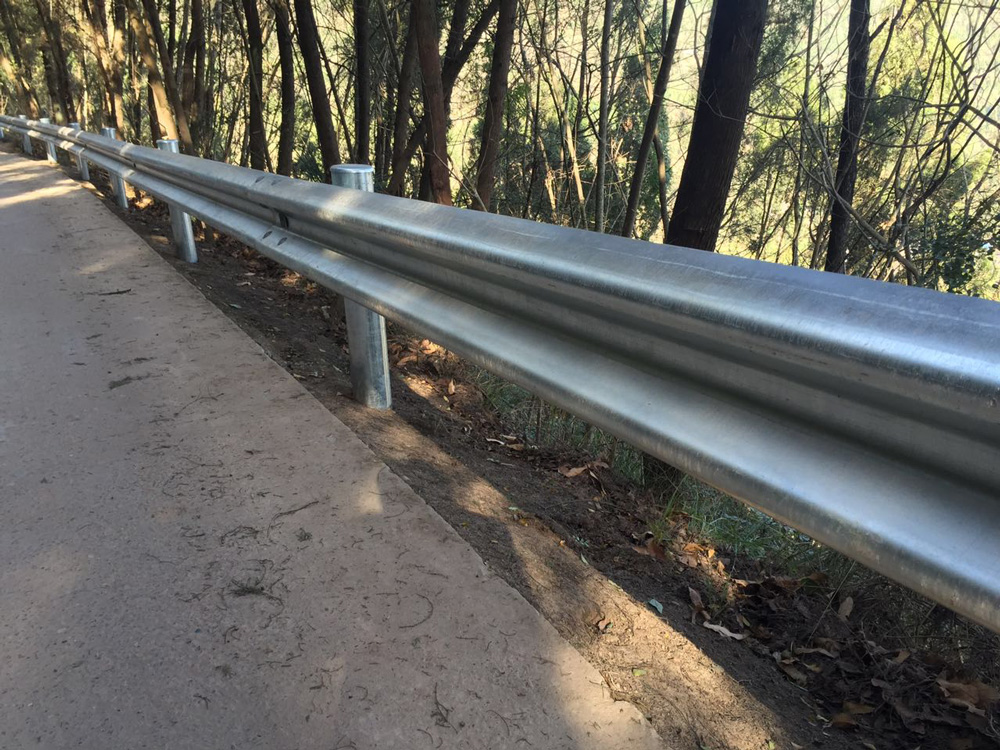

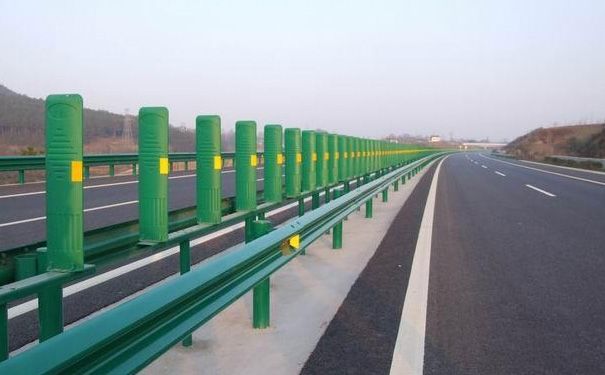

Highway Guardrail Roll Forming Machineis designed to produce highway guardrail which are anti-collision facilities on highways, mainly designed to prevent runaway vehicles from rushing out of the road. Different specifications are adopted according to the level of the road. There are two waves guardrail ( W-beam guardrail) and three waves guardrail (Thrie-beam guardrail ). The whole guardrail is composed of W-beam/ Thrie-beam, galvanized steel posts (with and without base plates), flared and curly ends, and hardware. The whole guardrail machine is composed of 5 Ton decoiler, press punch, main roll forming machine, hydraulic punch device, servo follow cutting device, outer table, hydraulic system, and electrical control system. Controlled by PLC control system, this solar C channel roll forming machine is fully automatically operation control with production speed 3-4 pieces/min, with cutting length 4320mm every piece.

Application

Highway guardrails are suitable for a wide range of roads, including rural roads, urban roads, and lower-speed highway roads. They are particularly effective in areas with moderate traffic and a lower risk of server accidents involving larger vehicle cars.

Advantages of Highway Guardrails:
Versatility: W-beam/ Thrie-beam guardrails are highly versatile and can be adapted to various road configurations, making them a popular choice for a wide range of applications.

Easy Installation and Maintenance:

The simple design of highway guardrail allows for easier installation and maintenance, resulting in cost-effective solutions for many road safety projects.

Working Process

Operation Flow:
Decoiling - Leveling - 315Ton Press Punch & Cutting- 120T Hydraulic Punch- Fast Feeding- Main Roll Forming - Outer Table

We are professional roll forming machine manufacturer focused on road guardrail industry for more than 30 years, in China, about 90% of the highway guardrail manufacturers use our machines.

Technical Specification

Highway Guardrail Roll Forming Machine
No.	Item	Specification
1	Suitable material	Carbon steel Coil
		Thickness(mm):3.0-4.0
		Yield strength: 250 - 550MPa
		Tensil stress( Mpa):G350Mpa-G550Mpa
2	Nominal forming speed(pcs/min)	3-4
3	Forming station	15 statons
4	Decoiler	Manual decoiler
5	PLC brand	Delta, Taiwan
6	Inverter brand	Yaskawa
7	Driving system	Gearbox drive
8	Rollers’ material	Cr12Mov( best roller material)
9	Station structure	Casting frame structure
10	Punching system	Punch by press machine
11	Power supply	380V 50Hz 3PH
12	Machine color	Industrial blue

Q & A

1. Q: What kinds of experience do you have in producing Highway Guardrail Roll Forming Machine?
A: We have rich experience of producing Highway Guardrail Roll Forming Machine, till now more than 1000 sets Highway Guardrail Roll Forming Machine produced by us.

2. Q: What is delivery time of Highway Guardrail Roll Forming Machine?
A: 80 days after contract confirmation.

3. Q: What is your machine speed?
A: Production speed is depending on customer’s punch hole requirement, usually forming speed is 3-4 pieces/min, with cutting length 4320mm/piece.

4. Q: What is your after-sales service system?
A: We will send engineer to customer’s factory for machine installation and commissioning, if customer require. We provide whole life service, If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.

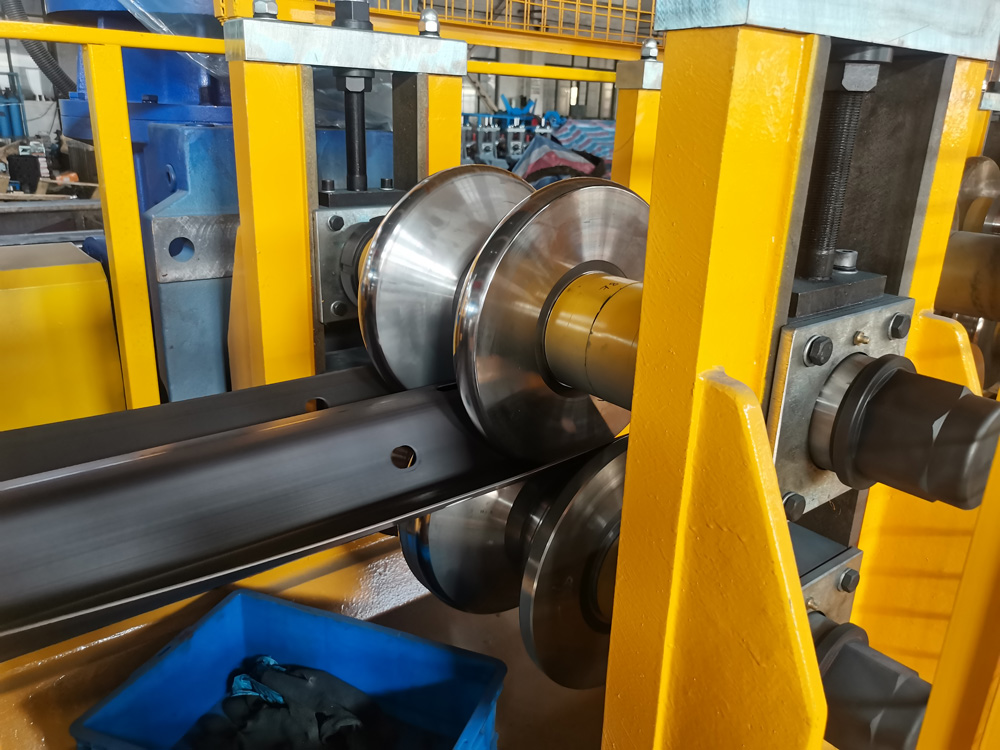

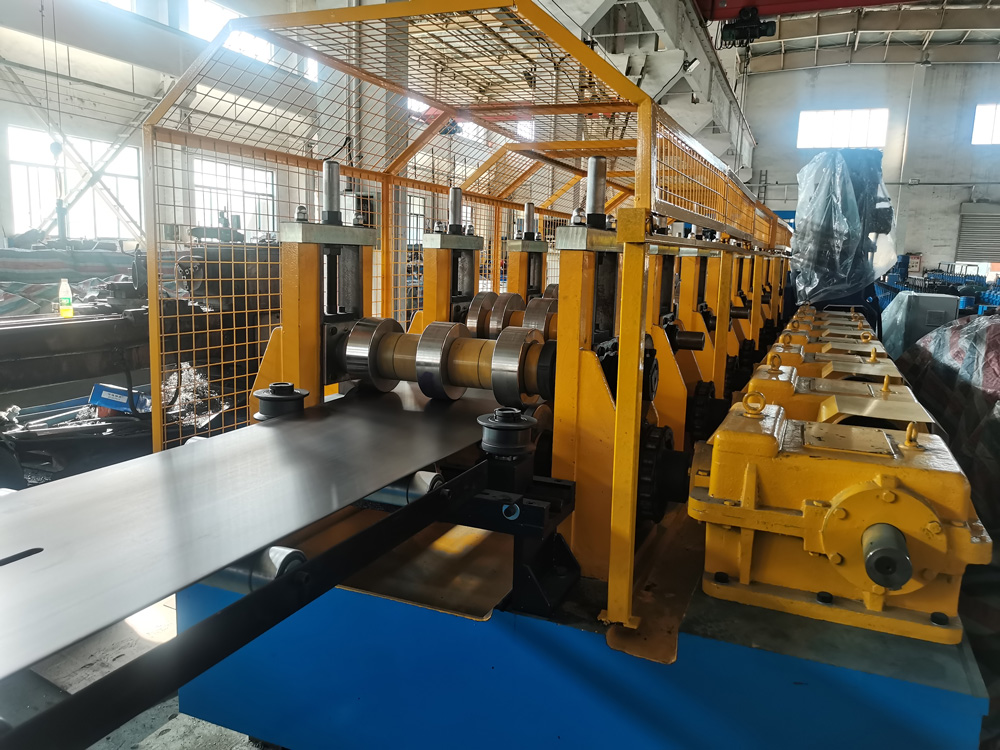

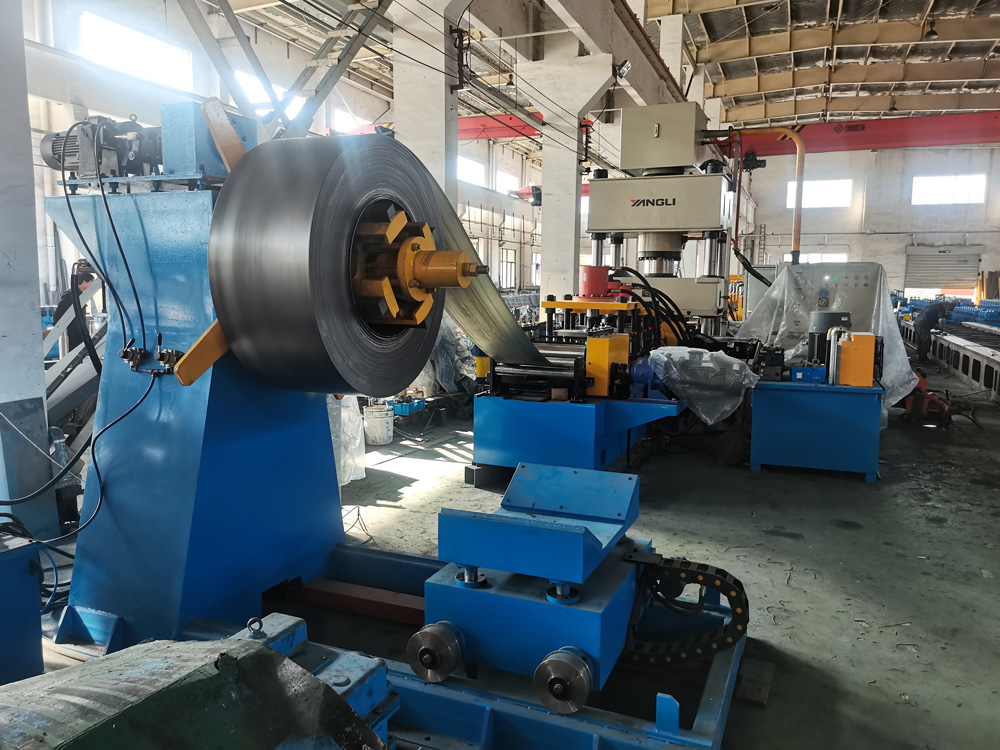

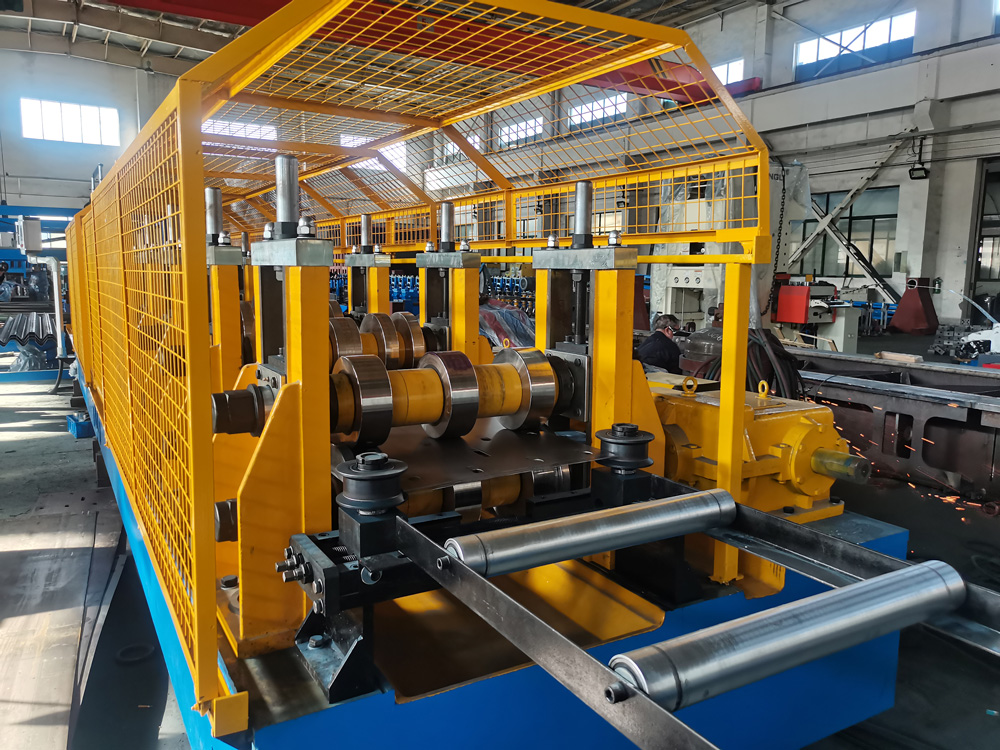

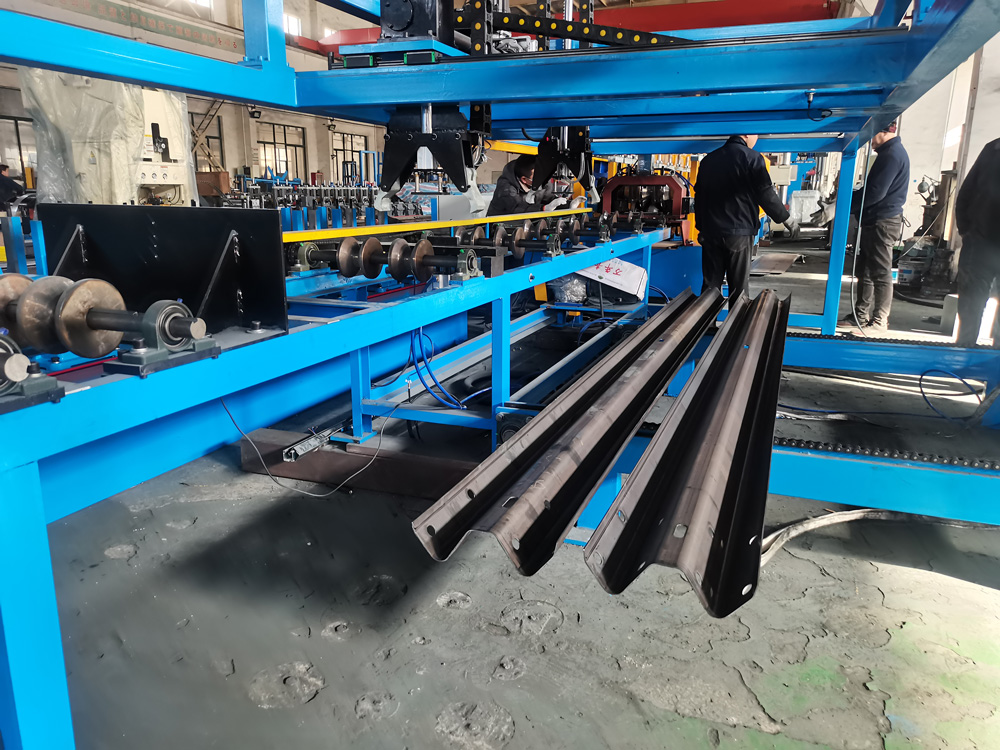

Machine Photo
