Steel Sheet Pile Roll Forming Machine

Description

Steel sheet pile roll forming machineis a specialized design equipment used to manufacture steel sheet pile, which is used for creating partition walls for retaining earth or water with watertight joints on both edges.The completesteel sheet piling roll forming machineis composed of decoiler, main roll forming machine, cutting machine, outer table, hydraulic system and PLC control system. The cold-formed steel sheet piles are made of steel plate with common thickness of 8mm- 14mm. With the advantage of lower production cost and flexible fixed-length control, the cold roll formed steel sheet piles are commonly used in the Civil engineering industry.

Application

As a construction foundation engineering material with reasonable structure, high strength and convenient construction, steel sheet pile has been widely used in various industries.

1. Municipal Engineering

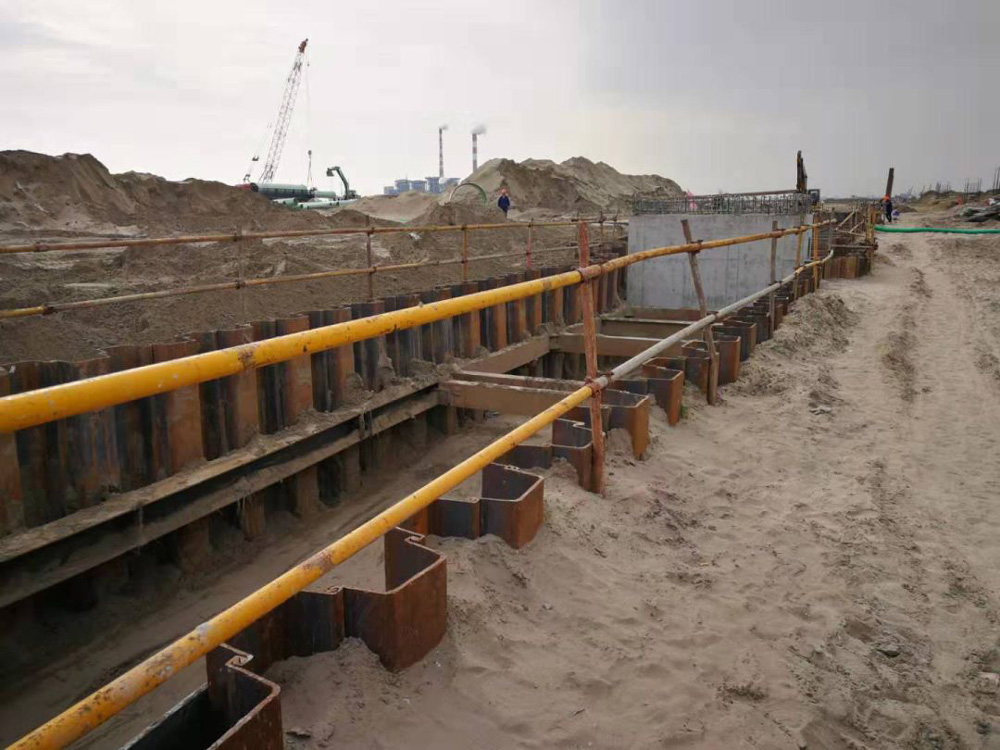

In urban municipal engineering, steel sheet piles can be used in bridge foundations, port terminals, underground garages, subway tunnels, bridge pier anchoring, large shopping malls and water conservancy projects.

2. Civil Engineering
Steel sheet piles are widely used in civil engineering, such as highways, urban expressways, ordinary roads, railway tunnels, subway tunnels and bridge foundations. Steel sheet piles can effectively support soil and resist earth pressure, and reduce foundation settlement.

3. Environmental protection projects
In terms of environmental protection projects, steel sheet piles are often used in the construction of landfills and solar photovoltaic power plants. Steel sheet piles can serve as the foundation for solid waste landfills because of their good load-bearing capacity and corrosion resistance. In addition, steel sheet piles can also serve as the foundation for solar photovoltaic power plants because of their excellent stability and earthquake resistance.

4. Marine Engineering

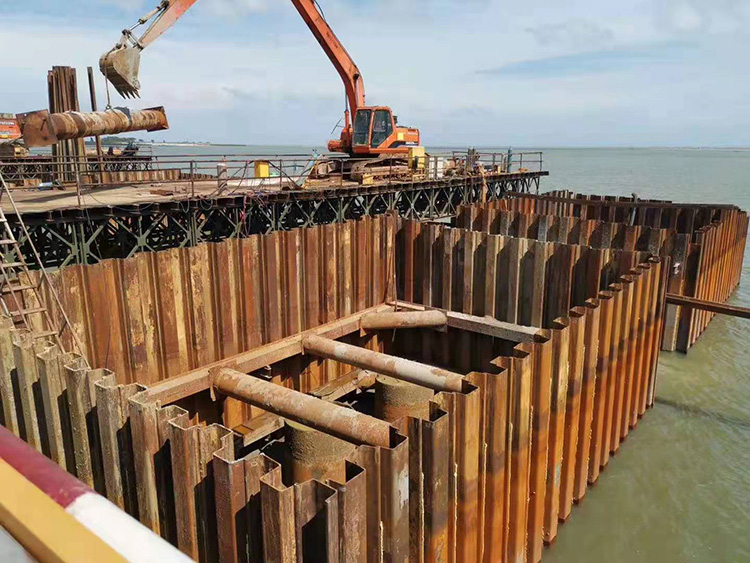

In marine engineering, steel sheet piles are widely used in depth contour projects, coast guard construction, docks and docks, undersea tunnels and partition walls.

Steel sheet piles also have excellent anti-corrosion properties and reusability, which can reduce waste and environmental pollution during construction.In short, with the continuous development of construction projects, the application range of steel sheet piles will become more and more extensive.

Working Process

Operation Flow:

Decoiler- Roll forming machine-Cutting -Out table

We are professional manufacturer of roll forming machines focused on solar strut channel industry for more than 30 years, in China, about 90% of the solar strut channel manufacturers use our machines. The advantage of using our solar strut channel roll forming machine include high efficiency (that you just need set the product length and quantity on touch screen, then the machine will run automatically), consistent product quality, and the ability to produce long lengths of channel without joints. These characteristics are essential for the structural integrity and durability of solar panel mounting systems.

Technical Specification

Solar C Channel Roll Forming Machine
No.	Item	Specification
1	Suitable material	Carbon steel Coil
		Thickness(mm):8.0-14mm
		Yield strength: 250 - 550MPa
		Tensil stress( Mpa):G350Mpa-G550Mpa
2	Nominal forming speed(m/min)	0-15
3	Forming station	30 tatons
4	Decoiler	hydraulic decoiler
5	PLC brand	Delta, Taiwan
6	Inverter brand	Yaskawa
7	Driving system	Gearbox drive
8	Rollers’ material	Cr12Mov( best roller material)
9	Station structure	Casting frame structure
10	Punching system	Punch by press machine
11	Power supply	380V 50Hz 3PH
12	Machine color	Industrial blue

Q & A

1. Q: What kinds of experience do you have in producing Steel sheet pile roll forming machine?
A: We have rich experience of producing steel sheet pile roll forming machine, till now more than 80 sets steel sheet pile roll forming machine produced and sold to customers local China and all over the world.

2. Q: What is delivery time of steel sheet pile roll forming machine?
A: 85 days after contract confirmation.

3. Q: What is your machine speed?
A: Production speed is depending on customer’s punch hole requirement, usually forming speed is 0-15m/min.

4. Q: What is your after-sales service system?
A: We will send engineer to customer’s factory for machine installation and commissioning, if customer require. We provide whole life service, If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.

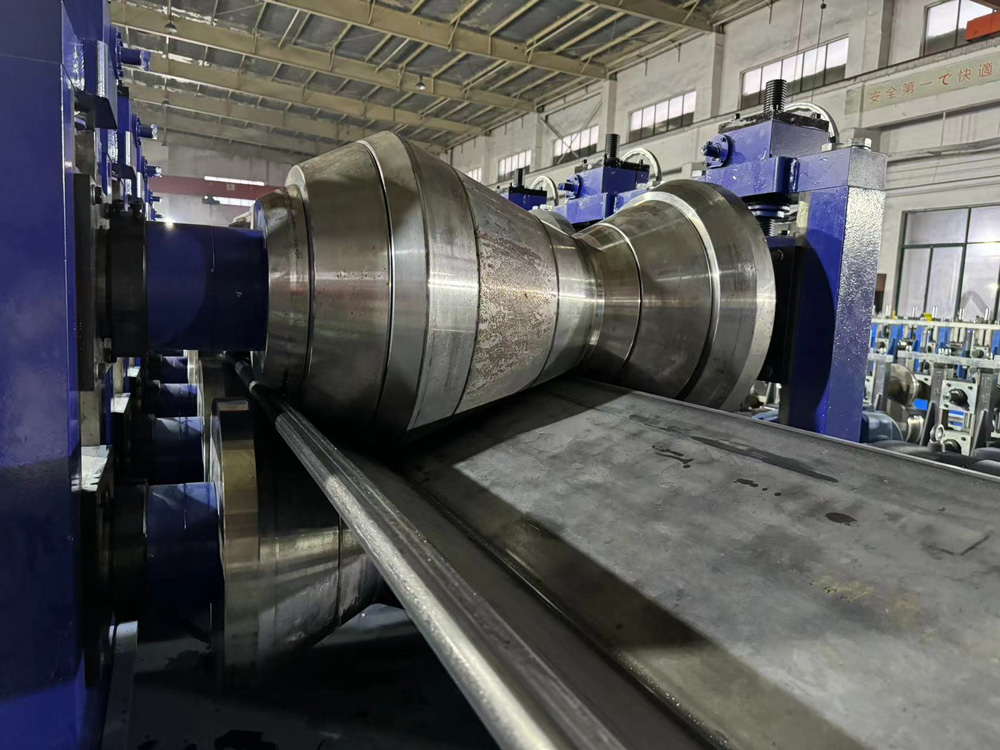

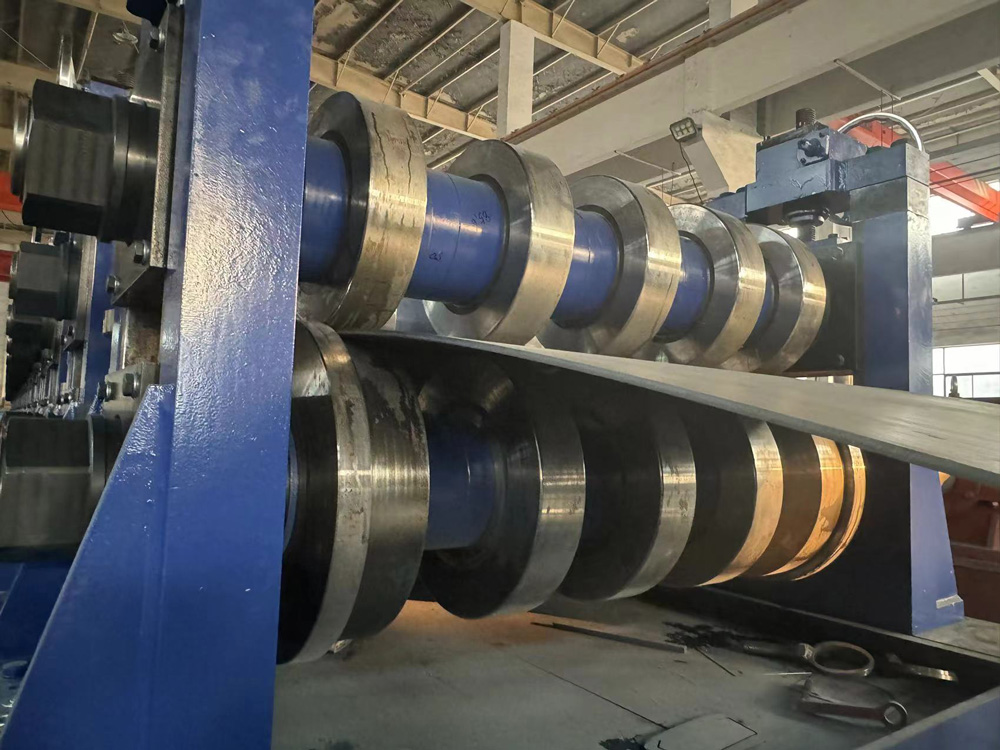

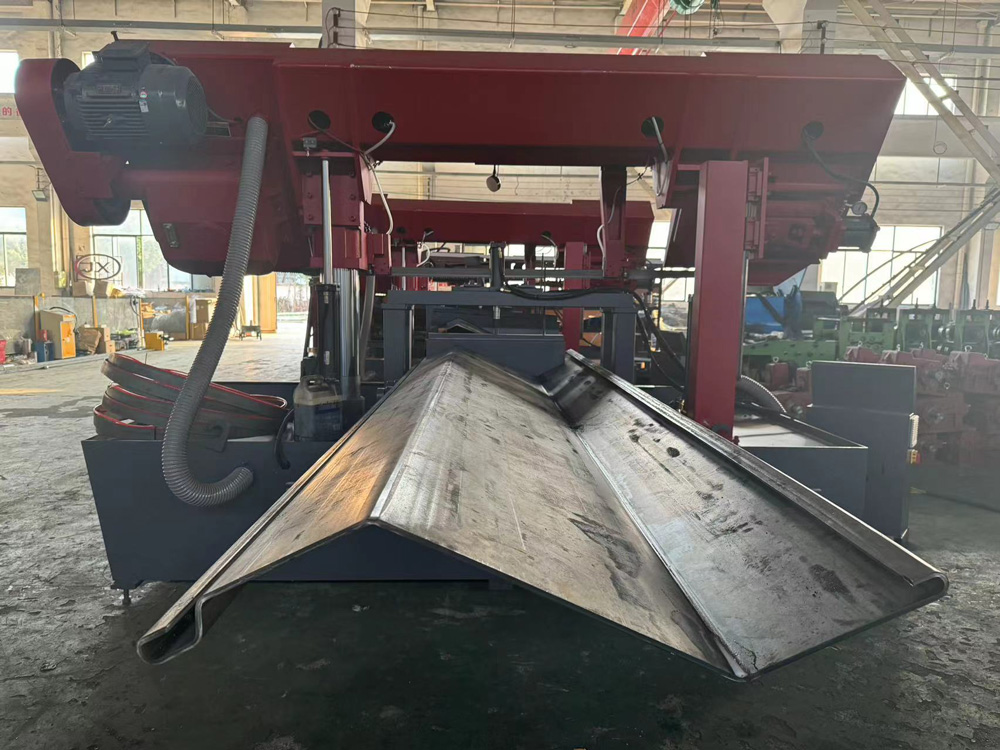

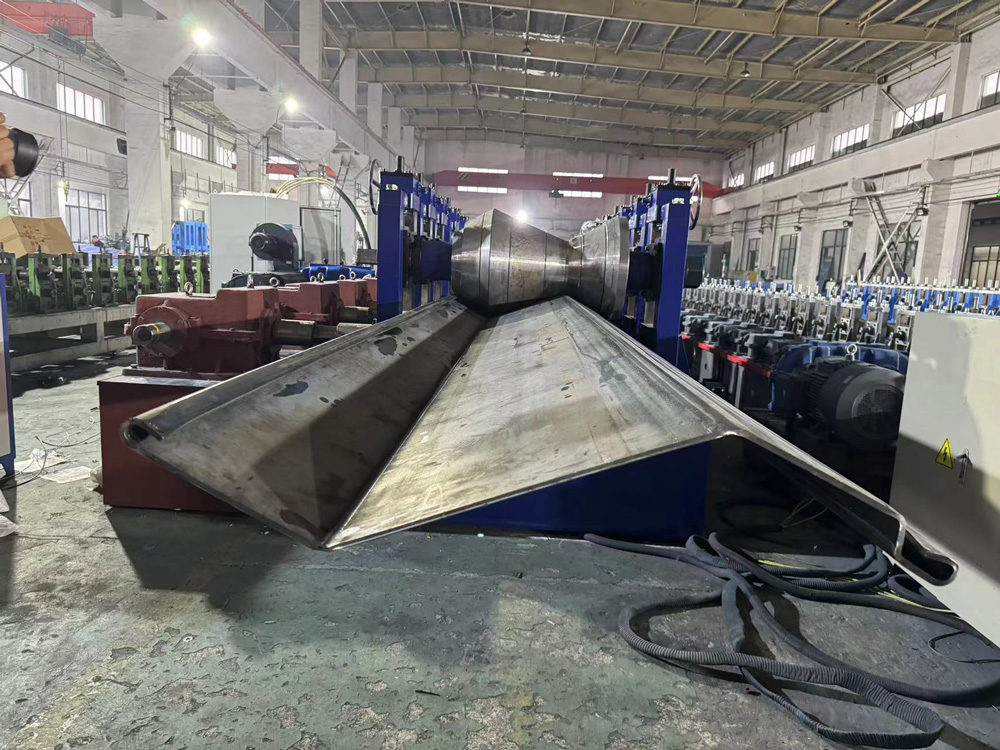

Machine Photo
