5mm C/U Channel Line: Successful Test Run for Bulgaria

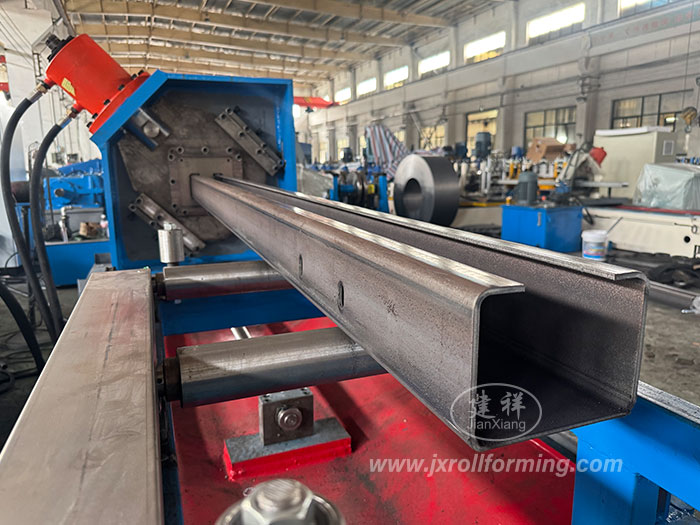

In July 2026 a fully automatic 5 mm C channel roll forming machine passed its successful test run for our Bulgarian customer. At 5 mm this line is built for heavy-gauge structural C and U profiles — well above the typical solar channel gauge range.
Machine configuration
| Max coil thickness | 5.0 mm |
|---|---|

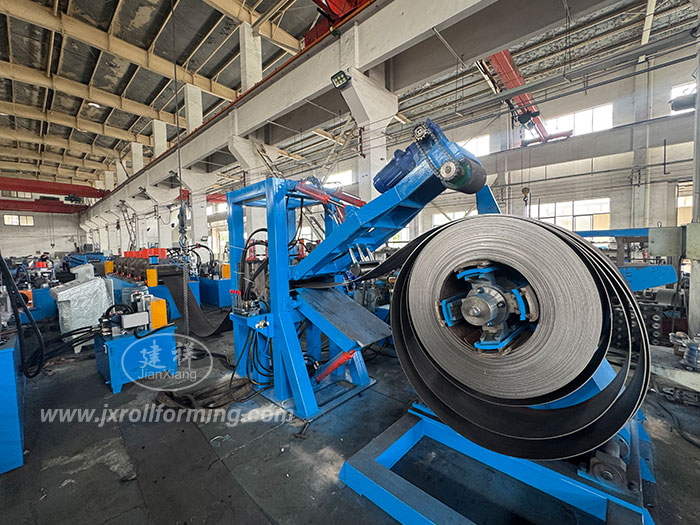

| Decoiler | 8-ton hydraulic decoiler with coil head shovel |
| Coil prep | Pre-leveler, coil head cutter and welder |
| Punching | 5-station hydraulic punch |
| Feeding | Servo puller |
| Forming | Main roll forming machine + straightener |
| Cutting | Servo follow hydraulic cutting |
| Output | Outer table, auto stacker |
| Tooling | Cassette structure — C and U channel, fast change |
Heavy-gauge channel in one line
Running 5 mm coil changes everything about the line design: the decoiler, the press and the cutting unit are all sized for the extra tonnage. The cassette tooling then lets the customer switch between C and U profiles quickly, so one heavy line serves both product families.
Need a line that runs thick gauge? View our C channel roll forming machines, or send us your coil spec and we will confirm the configuration.
