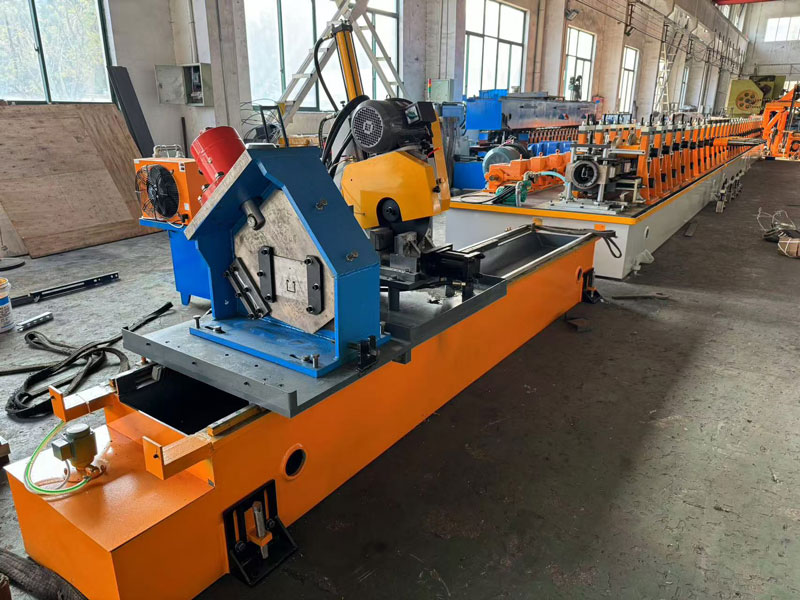

Fully Automatic Solar Strut Channel Line with Auto Stacker
In late 2024 one of our solar strut channel roll forming machines went into production for a local customer in China. The line is fully automatic from decoiler to finished, stacked channel, built to cut labour without cutting speed.
Machine configuration
| Profiles | 41×21 / 41×41 / 41×52 / 41×62 / 41×72 / 41×82 mm |
|---|---|
| Coil thickness | 1.5–2.5 mm |
| Materials | Carbon steel, galvanized steel, stainless steel |
| Punching | 80-ton press punch |
| Output handling | Auto stacker |
| Control | PLC, fully automatic line |
Built to save labour
In a strut channel plant the two biggest labour costs are at the punch and at the cutting end. This line removes both: the 80-ton press runs inside the forming cycle, and the auto stacker takes the finished channel off the line, so one operator can watch the whole process.
View our solar strut channel roll forming machines, or send us your monthly output target and we will size the line.
