Cable Tray Roll Forming Machine Manufacturer

Description

Cable Tray Roll Forming Machine is a specialized design equipment used to manufacture cable tray product, which before all manufactured by cable tray bending machine. With cable tray forming machine, it can manufacture cable tray with fast efficiency, and easy operation. This cable tray manufacturing machine is fully automatically controlled by PLC control system, you just need set the production quantity and cable tray width and height on touch screen, then the machine can run automatically. The whole cable tray making machine is composed of decoiler, leveler, servo feeder, press machine, main roll forming machine, outer table, hydraulic system and PLC control system.

Application

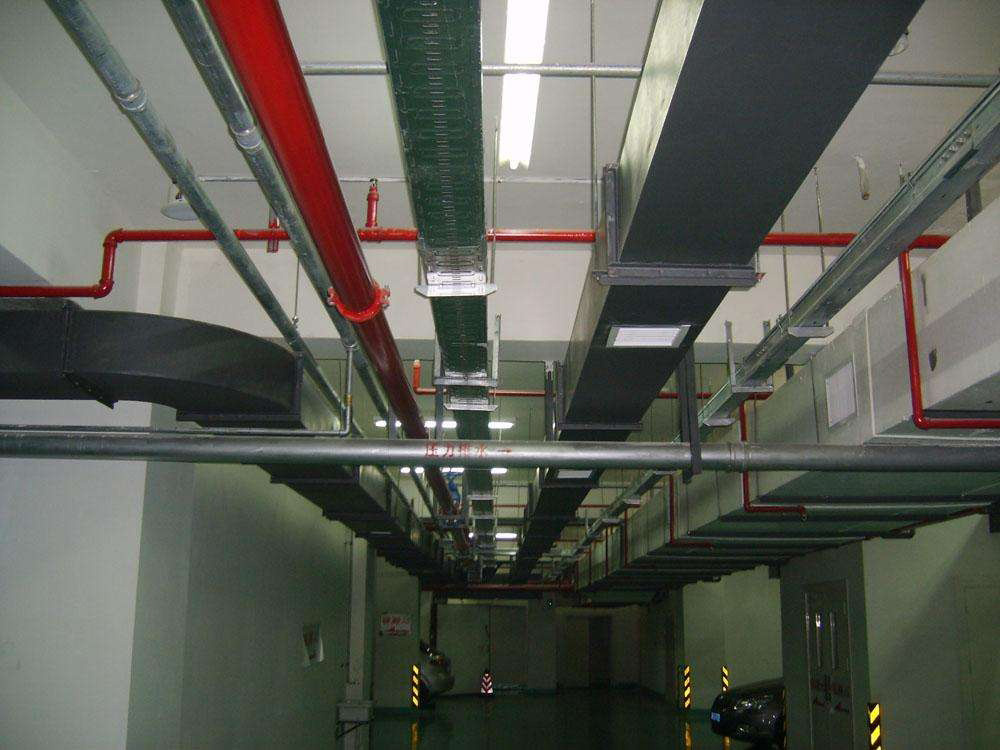

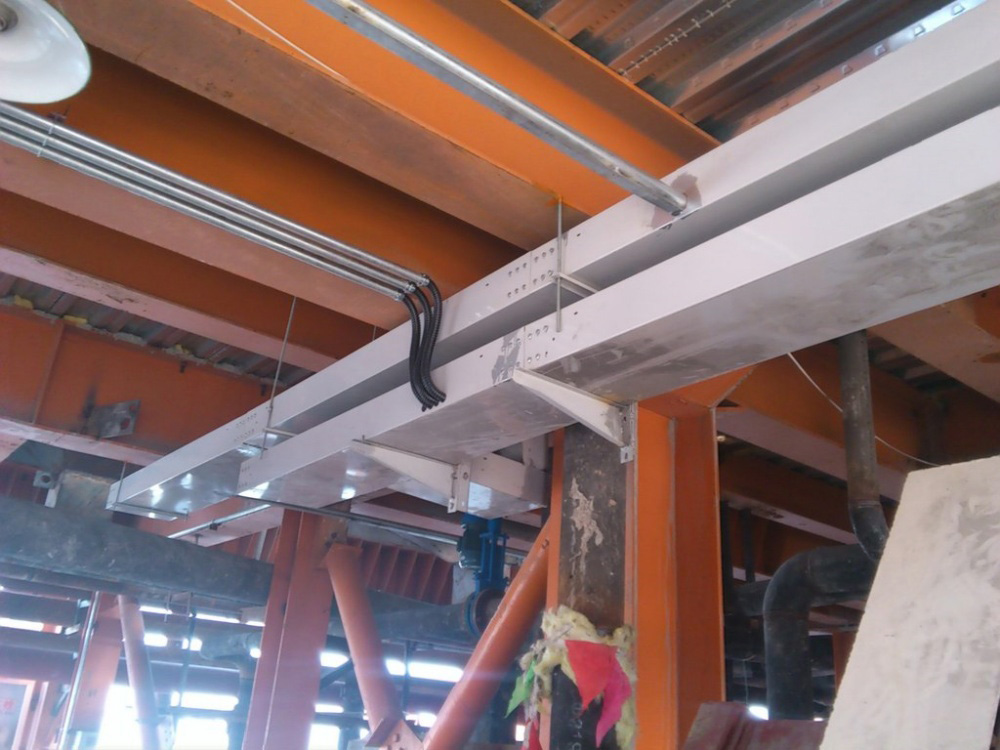

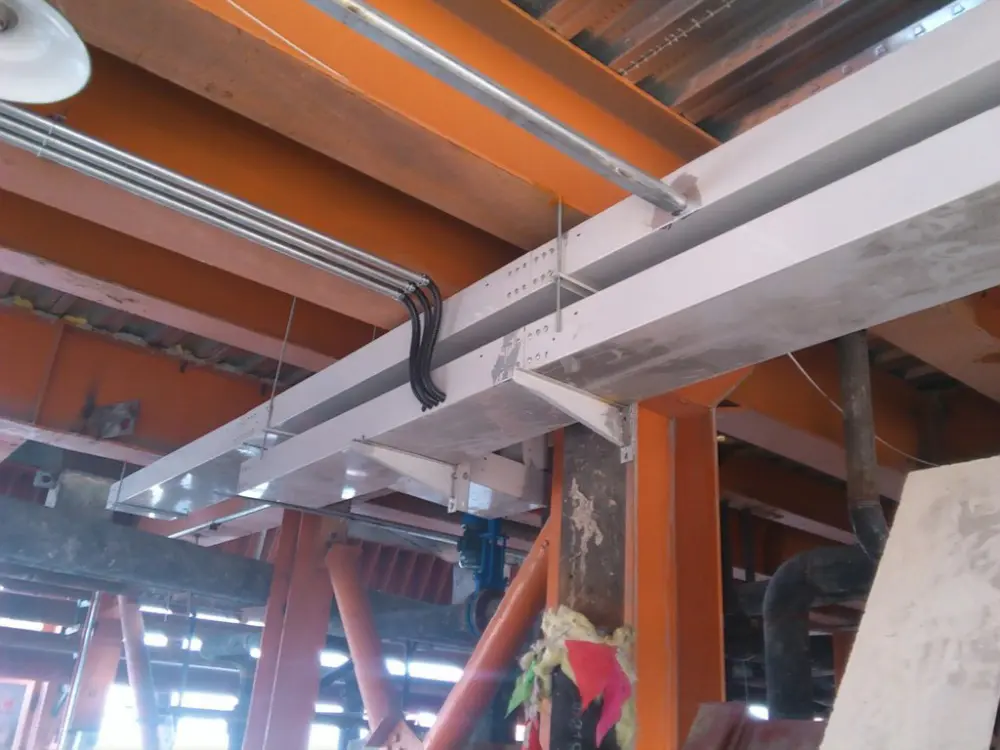

Cable tray is widely used in many fields such as electric power, communications, industry, commerce and civil construction.
Electric power industry: Cable trays are widely used in the wiring of power systems, including power transmission and distribution lines, control cables and signal cables. Through the support and protection of cable trays, signal transmission between power equipment is more reliable, and the security and stability of the system are improved.
Communications industry: In communications infrastructure, cable trays are used to carry communications cables such as optical fibers, network cables, and cables. Through reasonable wiring, cable trays can isolate interference signals, ensure the quality and speed of data transmission, and improve the reliability of communication networks.
Industrial, commercial and civil buildings: Cable trays are widely used in electrical wiring systems in industrial, commercial and civil buildings, such as power facilities, communication base stations, factory workshops and office buildings, etc., to meet the cable wiring needs of different fields.

Working Process

Operation Flow:
5T Decoiler- Servo Feeder- Punching Press Punch and Cutting -Roll forming machine- Out table

We are China professional manufacturer of roll forming machines focused on cable tray machine for more than 30 years, in China, about 80% of the cable tray manufacturers use our machines. The advantage of using our cable tray forming machine include high efficiency ( that you just need set the product length and quantity on touch screen, then the machine will run automatically), consistent product quality, and the ability to produce long lengths of channel without joints. These characteristics are essential for the structural integrity and durability of solar panel mounting systems.

Technical Specification

Q & A

1. Q: What kinds of experience do you have in producing Cable Tray Roll Forming Machine?
   A: We have rich experience of producing cable tray roll forming machine, till now more than 500 sets solar strut channel roll forming machine produced and sold to customers local China and all over the world.
2. Q: How many sizes can be made in one machine?
   A: One machine can produce cable tray of dimension size of width from 100-600mm, height 50-120mm, auto adjustment.
3. Q: What is delivery time of cable tray roll forming machine?
   A: 80 days after contract confirmation.
4. Q: What is your machine speed?
   A: Production speed is depending on customer’s punch hole requirement, usually forming speed is 0-15m/min.
5. Q: How does this solar strut channel roll forming machine works?
   A: The machine starts with a coil of flat metal sheet , usually made of galvanized coil, zinc aluminum coil, this coil is loaded into the machine where it is gradually uncoiled and fed into the forming process. The core of the machine features a series of rollers arranged in sequential stages. As the metal sheet passes through these rollers, each set incrementally bends and metal closer to the final shape. After the metal has been formed into the continuous channel shape, a cutting device cuts it into required length accordingly to the specifications need for the solar mounting structures. Some machines may also include additional features like punching or stamping mechanisms that create holes or slots or teeth in the channel. These modifications are crucial for facilitating the assembly of the solar panel frames, allowing for connections, and fastening of the solar panels.
6. Q: What is your after-sales service system?
   A: We will send engineer to customer’s factory for machine installation and commissioning, if customer require. We provide whole life service, If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.

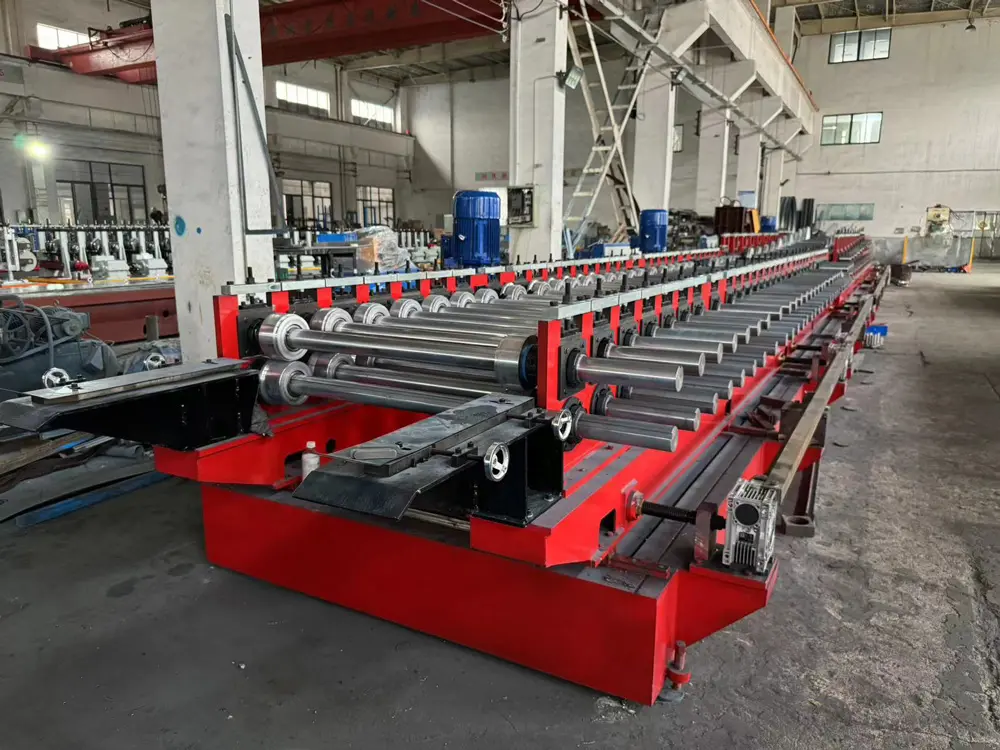

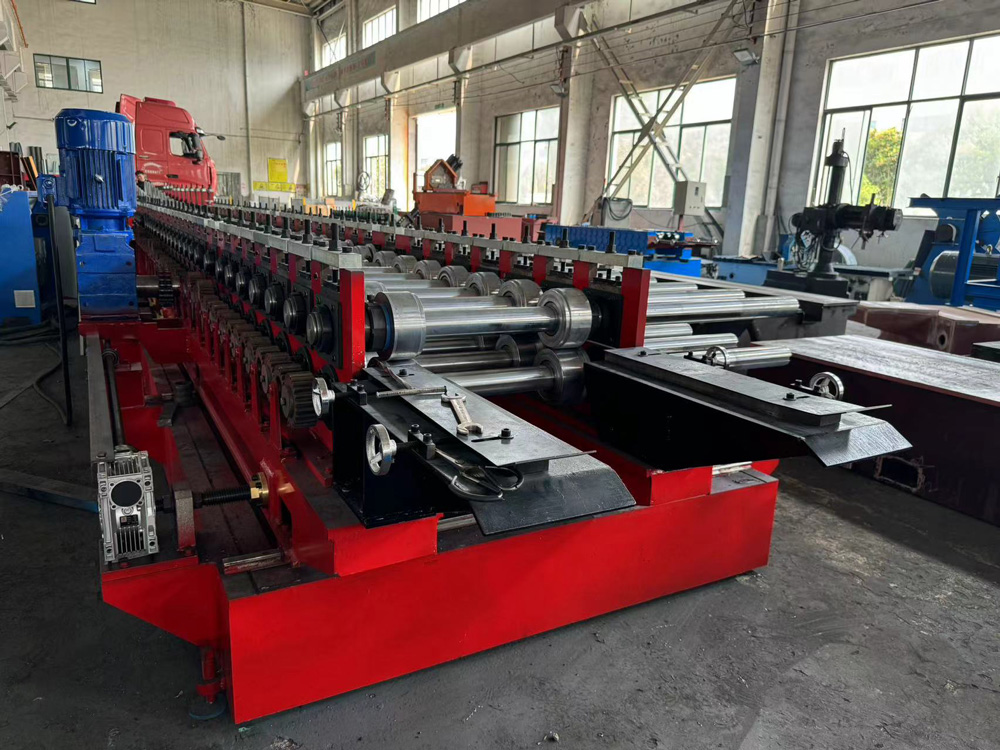

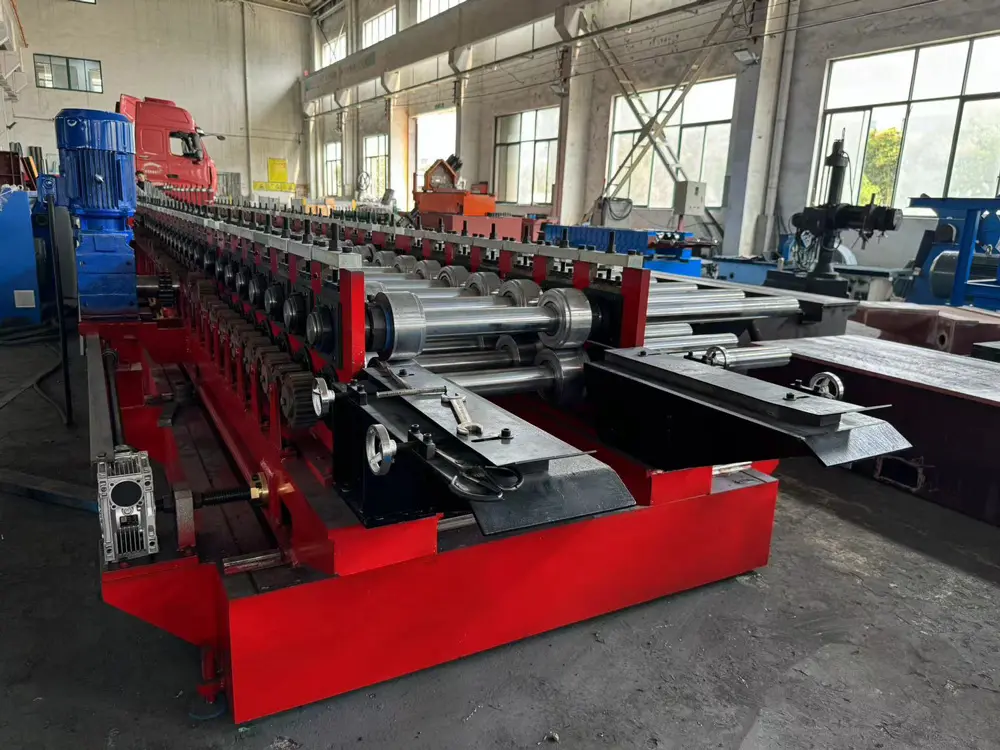

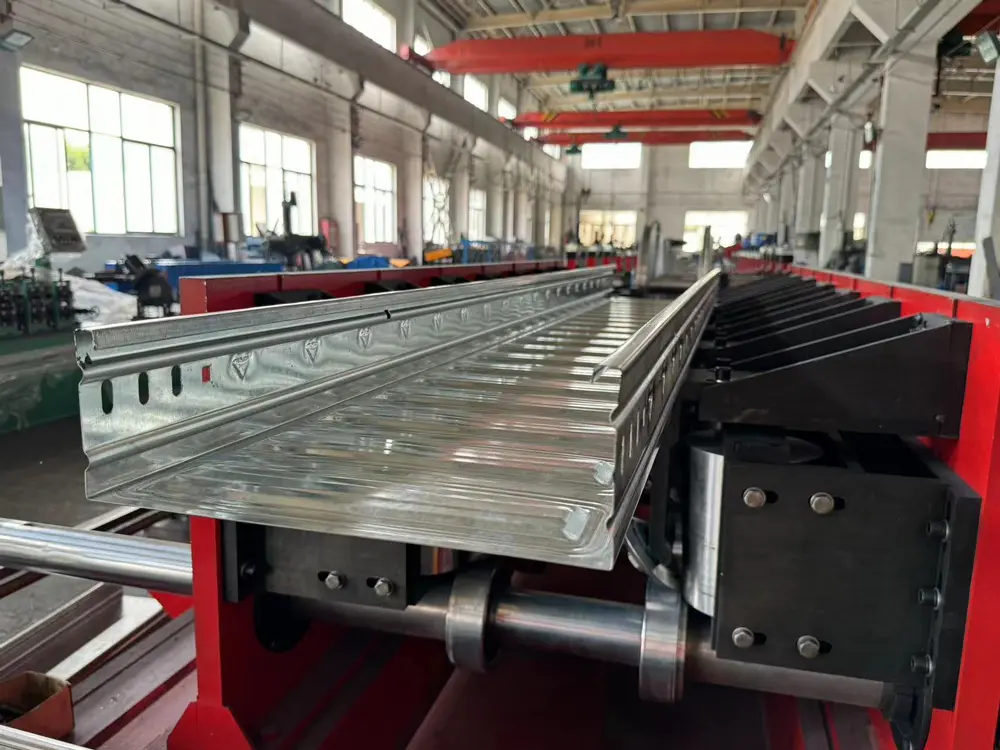

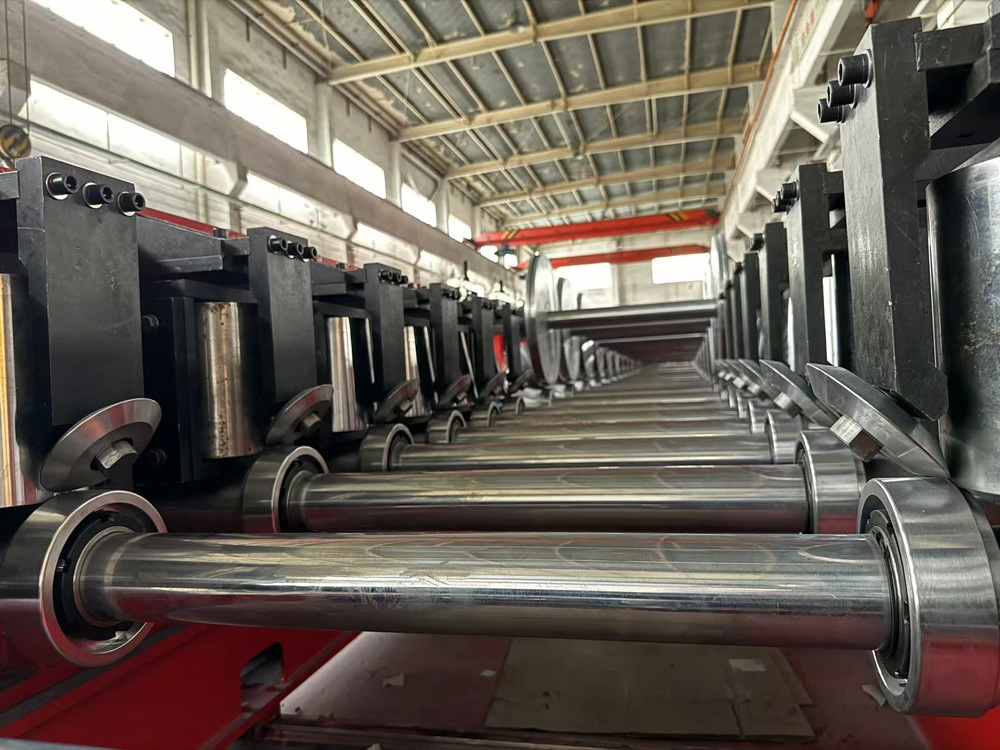

Machine Photo
