Roll forming machine for C channel supports in solar ground mounting, thickness 1.5-3.0mm, speed up to 47 m/min. 30+ years factory, OEM & custom available.

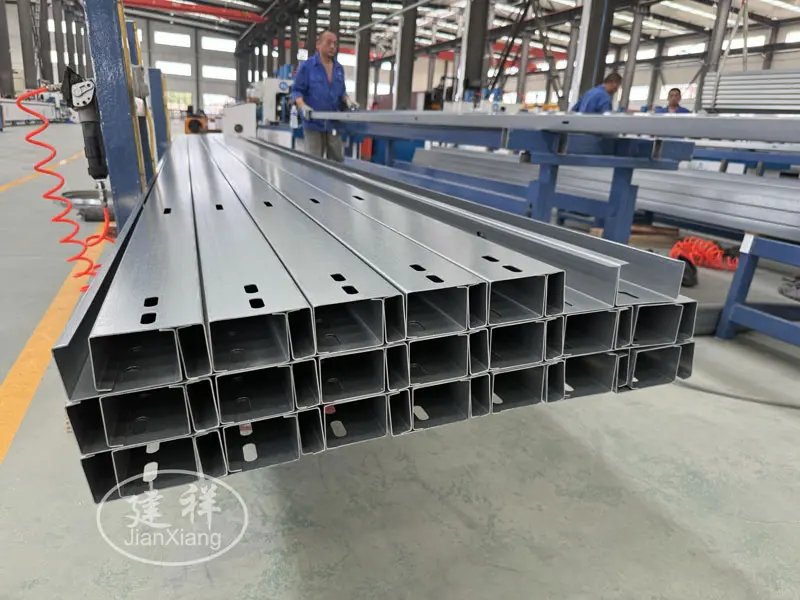

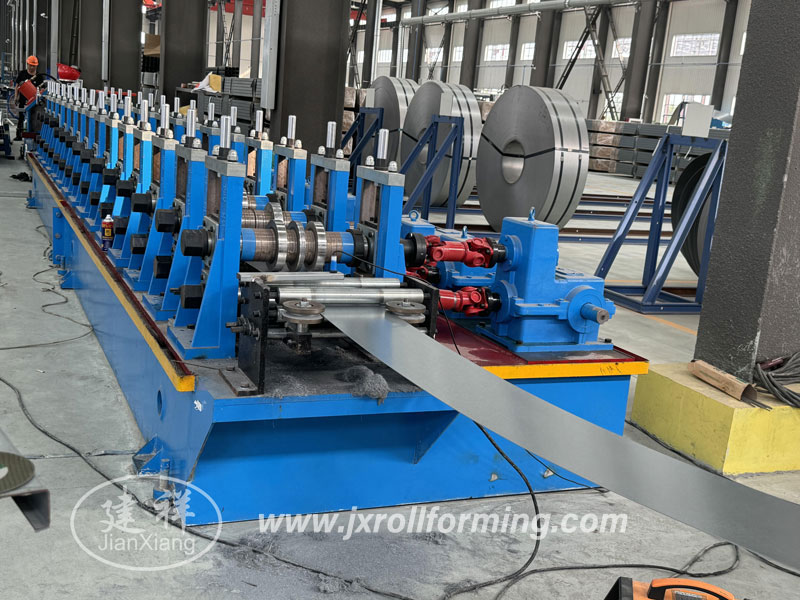

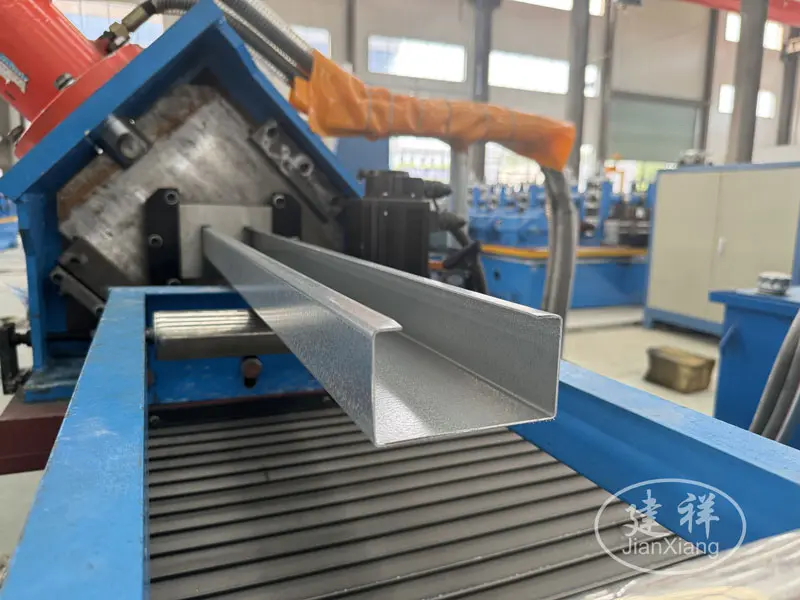

Solar C Channel Steel Support Roll Forming Machine is designed to produce Steel C channel solar panel bracket which is applicable to solar ground mounting system.Solar ground mounting system is a bracket structure for installing solar panels, which is widely used in ground power stations. This solar C Channel Roll Forming Machine is composed of decoiler, main forming machine, hydraulic cutting machine, outer table, control box, and hydraulic system, etc. This solar C channel steel roll forming machine is designed to produce solar C channel dimensions of width from 30-150mm, height 30-60mm, thickness from 1.5-3.0mm. Fully automatically controlled by PLC control system, this line can run with maximum speed 47m/min.
We are professional manufacturer of roll forming machines focused on solar strut channel industry for the last 30 years, and our machines are trusted by channel manufacturers in China and 6+ export markets. famous brand such as Hilti, Walraven, Schletter, Longda, etc. Our machines are in service at solar channel production centers across China.

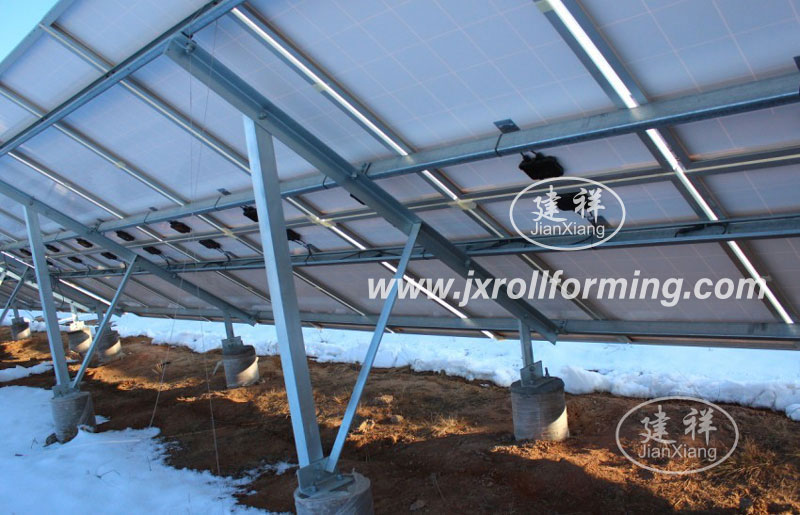

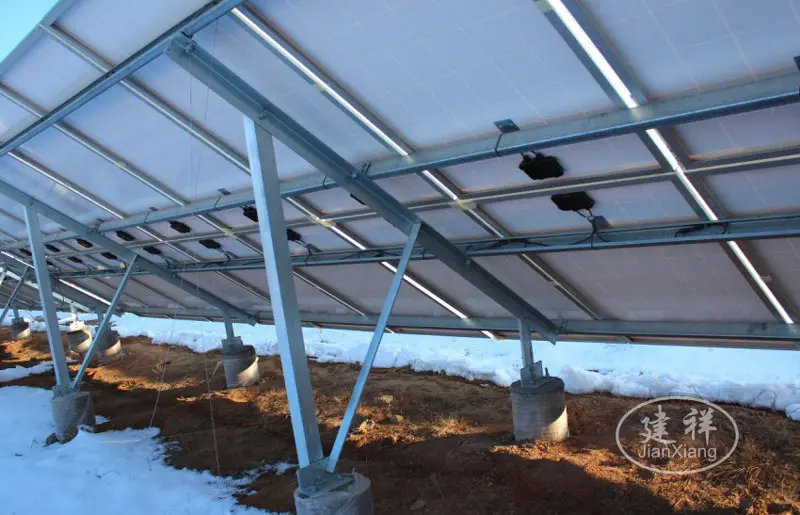

Solar C channel support brackets are commonly used in solar panel installations to provide structural support and mounting for the panels. Here are some typical applications, such as roof mounting, ground mounting, etc, which offer a robust and flexible mounting solution for various solar panel installation scenarios, contributing to the widespread adoption of solar energy systems.
Operation Flow:

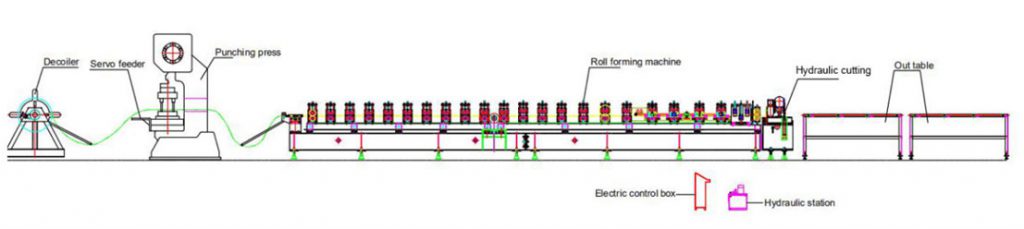

5T Decoiler- Servo Feeder- Punching press-Roll forming machine-Hydraulic servo follow cut-Out table
We are professional manufacturer focused on solar strut channel industry for more than 30 years, and our machines are trusted by channel manufacturers in China and 6+ export markets.
| Solar C Channel Steel Support Roll Forming Machine | ||
| No. | Item | Specification |
| 1 | Suitable material | Galvanized Coil, PPGI, Carbon steel Coil |
| Thickness(mm):1.5-3.0 | ||
| Yield strength: 250 – 550MPa | ||
| Tensil stress( Mpa):G350Mpa-G550Mpa | ||
| 2 | Nominal forming speed(m/min) | 0-30 |
| 3 | Forming station | 16 stations |
| 4 | Decoiler | Manual decoiler |
| 5 | PLC brand | Delta, Taiwan |
| 6 | Inverter brand | Yaskawa |
| 7 | Driving system | Gearbox drive |
| 8 | Rollers’ material | Cr12Mov( best roller material) |
| 9 | Station structure | Casting frame structure |
| 10 | Punching system | Punch by press machine |
| 11 | Power supply | 380V 50Hz 3PH |
| 12 | Machine color | Industrial blue |
1. Q: What kinds of experience do you have in producing Solar C Channel Steel Support Roll Forming Machine?
A: We have rich experience of producing solar C channel steel support roll forming machine, till now more than 1000 sets solar C channel steel support roll forming machine produced by us.
2. Q: How many sizes can be made in one machine?
A: One machine could produce Solar C channel size of width 30-150mm, height 30-60mm, any size can be produced, and punch holes can be produced also as per customer’s drawing requirement.
3. Q: What is delivery time of solar C channel steel roll forming machine?
A: 60 days after contract confirmation.
4. Q: What is your machine speed?
A: Production speed is depending on customer’s punch hole requirement, usually forming speed is 0-47m/min.
5. Q: What is your after-sales service system?
A: We will send engineer to customer’s factory for machine installation and commissioning, if customer require. We provide whole life service, If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.
