Forms W-beam and Thrie-beam highway guardrail at 3-4 pieces/min with 4320mm cut length, fully automatic PLC control. 30+ years factory, OEM & custom available.

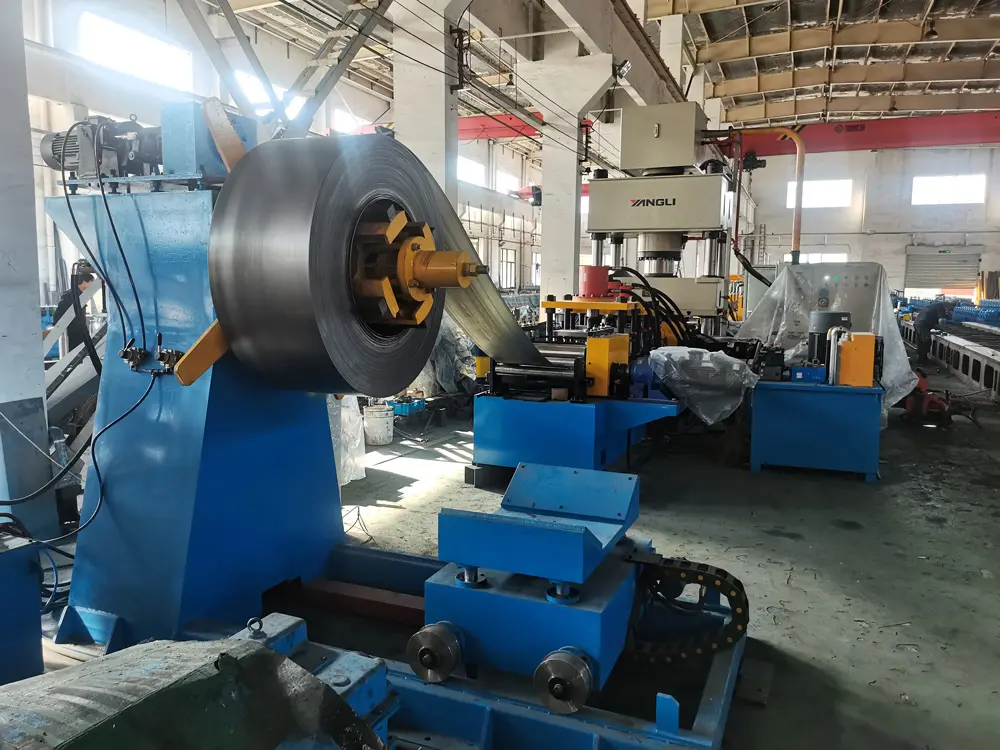

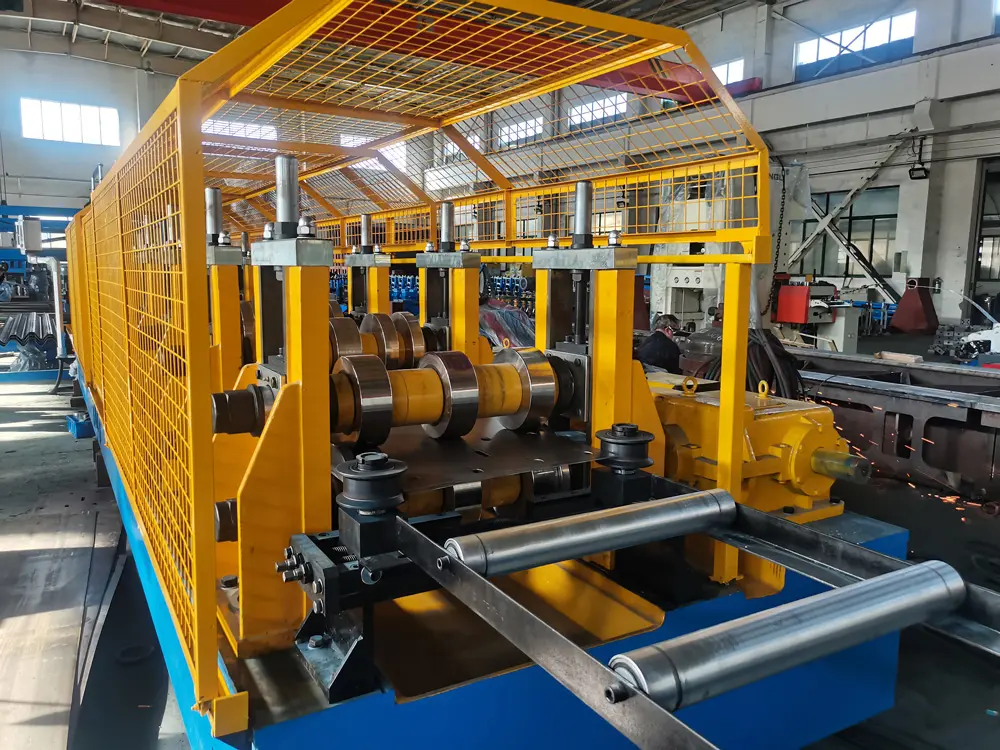

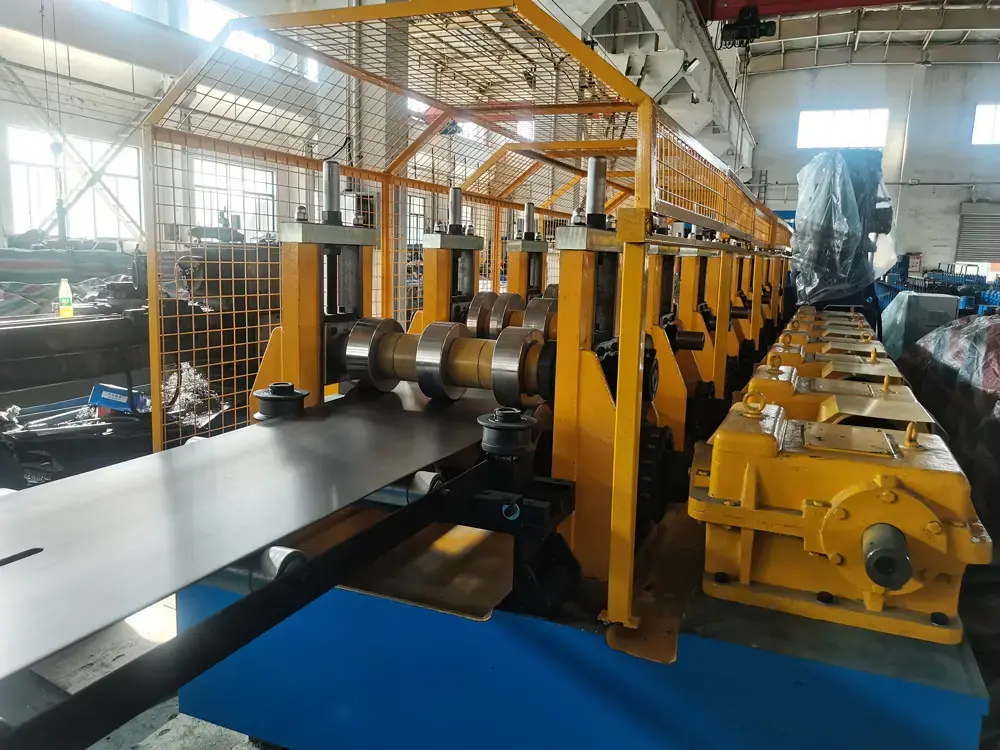

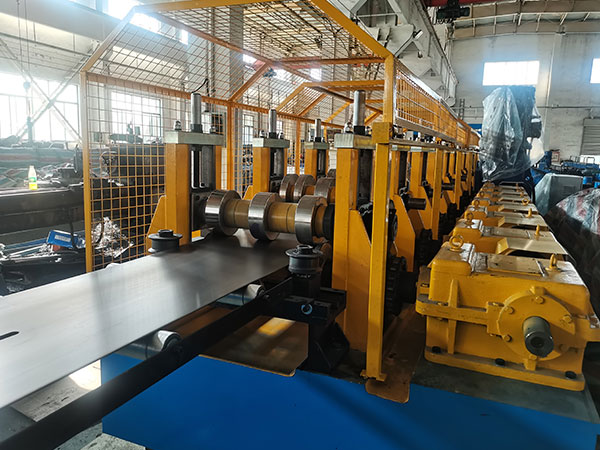

Highway Guardrail Roll Forming Machineis designed to produce highway guardrail which are anti-collision facilities on highways, mainly designed to prevent runaway vehicles from rushing out of the road. Different specifications are adopted according to the level of the road. There are two waves guardrail ( W-beam guardrail) and three waves guardrail (Thrie-beam guardrail ). The whole guardrail is composed of W-beam/ Thrie-beam, galvanized steel posts (with and without base plates), flared and curly ends, and hardware. The whole guardrail machine is composed of 5 Ton decoiler, press punch, main roll forming machine, hydraulic punch device, servo follow cutting device, outer table, hydraulic system, and electrical control system. Controlled by PLC control system, this solar C channel roll forming machine is fully automatically operation control with production speed 3-4 pieces/min, with cutting length 4320mm every piece.

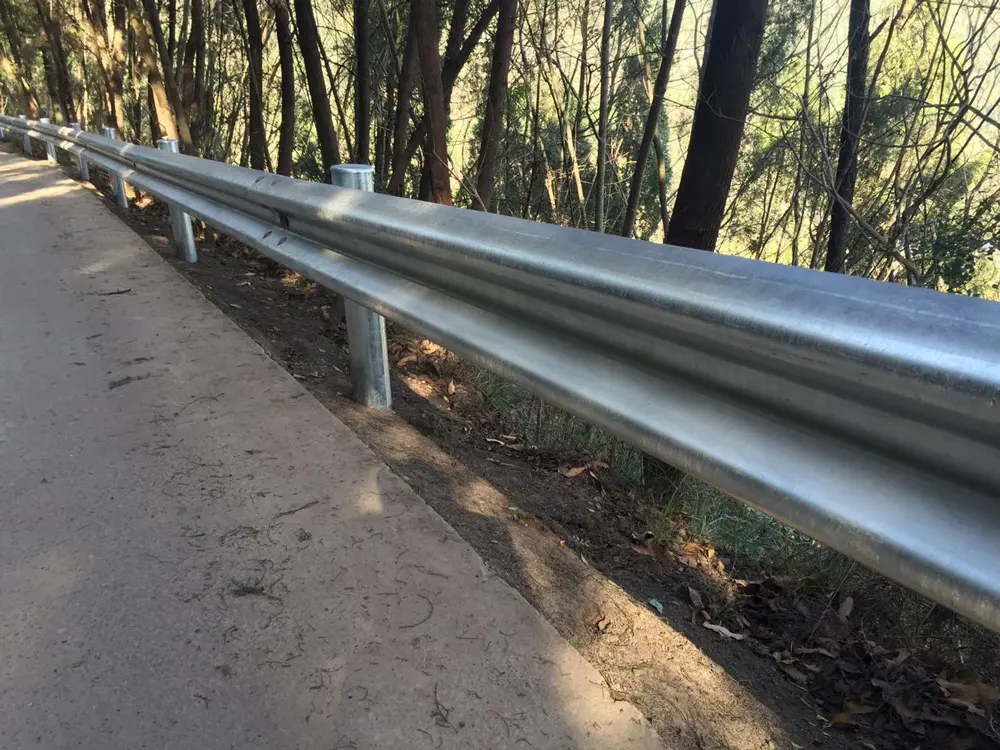

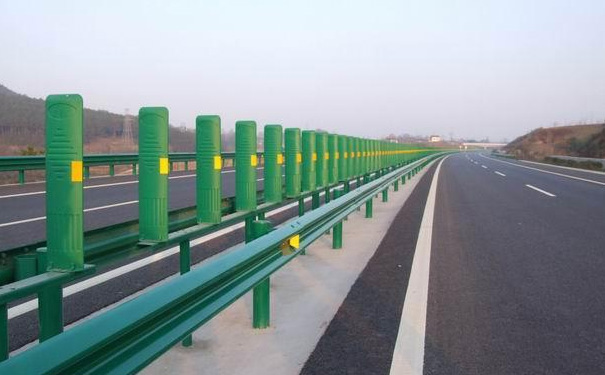

Highway guardrails are suitable for a wide range of roads, including rural roads, urban roads, and lower-speed highway roads. They are particularly effective in areas with moderate traffic and a lower risk of server accidents involving larger vehicle cars.
Advantages of Highway Guardrails:
Versatility: W-beam/ Thrie-beam guardrails are highly versatile and can be adapted to various road configurations, making them a popular choice for a wide range of applications.
Easy Installation and Maintenance:
The simple design of highway guardrail allows for easier installation and maintenance, resulting in cost-effective solutions for many road safety projects.
Operation Flow:
Decoiling – Leveling – 315Ton Press Punch & Cutting- 120T Hydraulic Punch- Fast Feeding- Main Roll Forming – Outer Table
We are professional roll forming machine manufacturer focused on road guardrail industry for more than 30 years, and our machines are trusted by channel manufacturers in China and 6+ export markets.
| Highway Guardrail Roll Forming Machine | ||
| No. | Item | Specification |
| 1 | Suitable material | Carbon steel Coil |
| Thickness(mm):3.0-4.0 | ||
| Yield strength: 250 – 550MPa | ||
| Tensil stress( Mpa):G350Mpa-G550Mpa | ||
| 2 | Nominal forming speed(pcs/min) | 3-4 |
| 3 | Forming station | 15 statons |
| 4 | Decoiler | Manual decoiler |
| 5 | PLC brand | Delta, Taiwan |
| 6 | Inverter brand | Yaskawa |
| 7 | Driving system | Gearbox drive |
| 8 | Rollers’ material | Cr12Mov( best roller material) |
| 9 | Station structure | Casting frame structure |
| 10 | Punching system | Punch by press machine |
| 11 | Power supply | 380V 50Hz 3PH |
| 12 | Machine color | Industrial blue |
Specs, common pitfalls and selection logic — read before you order.

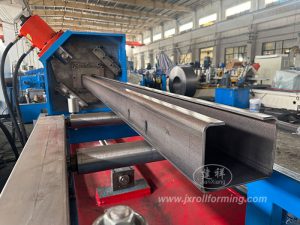

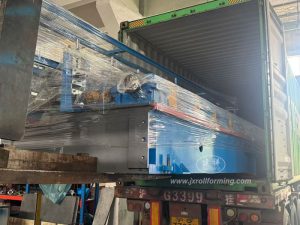

Recent deliveries of our roll forming lines to customers around the world.
